Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor

Name: Single Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor
Brand: PUNAISGD
Price: 1 USD

Wholesale Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor from china suppliers

Brand Name : PUNAISGD

Model Number : ADSS-144B1.3-200m

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 7days

Packaging Details : wooden drum

Name : ADSS Fiber Optic Cable 200m

Type : ADSS-144B1.3-200m

Model No : All Dielectric Cable

Strength Member : Aramid Yarn

Cable Model : single jacket 200m Span

Package : Wooden Drum/Customized

Cable Weight : 200 kg/km

Installation Method : Aerial

Life Expectancy : 30 Years

Fiber Type : Single-mode G.652D

Outer Diameter : 10.5mm

Contact Now

Outdoor Single/Double Jacket Aerial 144 Core G652D Span 200m ADSS Fiber Optic Cable

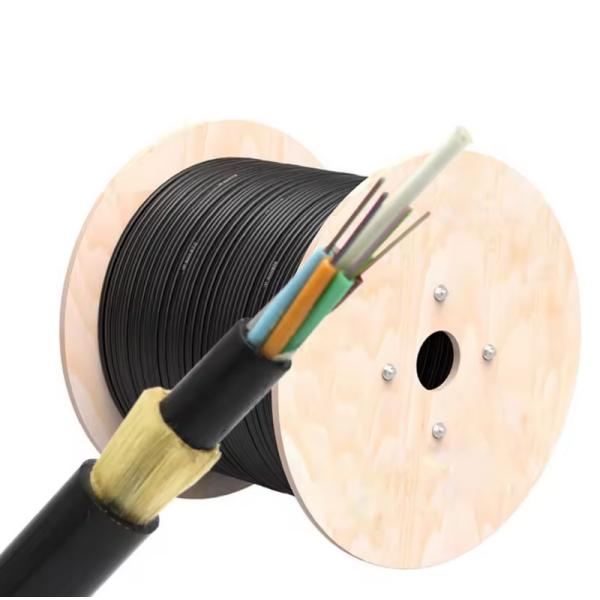

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce . Finally, PE or AT outer jacket is extruded.

• It can be installed without power off.
• Easy to install with light weight and small diameter
• Customized span length (up to 1000 meters) suitable for different requirements
• Excellent mechanical and environmental performance
• Good water resistance performance
• Gel-filled loose tube protects the fiber well

Single / Double Jacket ADSS Fiber Optic Cable 200m 144 Core G652D Outdoor

PRODUCT SPECIFICATIONS

Fiber data

Fiber Type	Attenuation		1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
Fiber Type	@1310nm(dB/KM)	@1550nm(dB/KM)	1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450

Technical Parameters

Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	100m Span Tensile Strength (N)		Crush Resistance (N/100mm)		Bending Radius (mm)
Fiber Count	Cable Diameter (mm) ±0.5	Cable Weight (kg/km)	Long Term	Short Term	Long Term	Short Term	Static	Dynamic
2-12	9.8	80	1000	2500	300	1000	10D	20D
24	9.8	80	1000	2500	300	1000	10D	20D
36	9.8	80	1000	2500	300	1000	10D	20D
48	9.8	80	1000	2500	300	1000	10D	20D
72	10	80	1000	2500	300	1000	10D	20D
96	11.4	100	1000	2500	300	1000	10D	20D
144	14.2	150	1000	2500	300	1000	10D	20D

Application

Power Line, dielectric needed or large span communication line.

Laying Method

Self-supporting aerial.

Operating Temperature

Temperature Range
Transportation	Installation	Operation
-40℃~+70℃	-5℃~+45℃	-40℃~+70℃

Standard

DL/T 788-2016

PACKING AND MARK

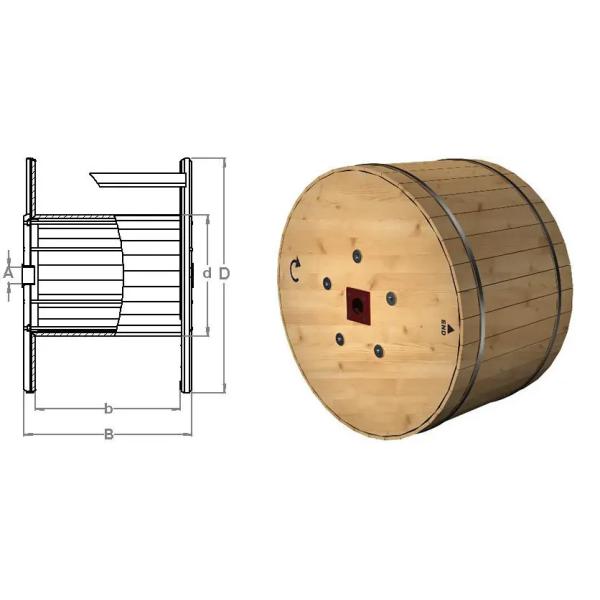

Fibercable puls cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage. It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.

The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.
